Fun with Filters and Frequencies!

Overview

This project explores fundamental concepts in image processing through both spatial and frequency domain operations. We begin by building intuitions about 2D convolutions and filtering, implementing everything from scratch to understand the mathematics behind image transformations. We then advance to frequency domain analysis, creating hybrid images that change interpretation based on viewing distance, and implementing multi-resolution blending for seamless image compositing.

Part 1.1: Convolutions from Scratch

I implemented 2D convolution from scratch using NumPy, starting with a naive four-loop implementation and optimizing to a two-loop version. The implementation includes proper zero-padding to maintain image dimensions. I compared my implementation with scipy.signal.convolve2d to verify correctness.

Implementation Details

def pad(img, x, y):
    h, w = img.shape
    out = np.zeros((h + 2*y, w + 2*x), dtype=np.float64)
    out[y: y + h, x: x + w] = img[:]
    return out

def four_loops(img, kernel):
    h, w = img.shape
    ky, kx = kernel.shape
    ky, kx = ky//2, kx//2
    kflip = kernel[::-1, ::-1]
    work = pad(img, kx, ky)
    out = np.zeros((h, w), dtype=np.float64)
    for i in range(h):
        for j in range(w):
            acc = 0.0
            for y in range(kernel.shape[0]):
                for x in range(kernel.shape[1]):
                    acc += work[y + i, x + j] * kflip[y, x]
            out[i, j] = acc
    return out

def two_loops(img, kernel):
    h, w = img.shape
    ky, kx = kernel.shape
    kflip = kernel[::-1, ::-1]
    work = pad(img, kx//2, ky//2)
    out = np.zeros((h, w), dtype=np.float64)
    for i in range(h):
        for j in range(w):
            patch = work[i:i+ky, j:j+kx]
            out[i, j] = np.sum(patch * kflip)
    return out

def auto_convolve(img, kernel):
    if img.ndim == 2:
        return convolve2d(img, kernel, mode='same', boundary='symm')
    else:
        out = np.zeros_like(img, dtype=np.float64)
        for c in range(img.shape[2]):
            out[..., c] = convolve2d(img[..., c], kernel, mode='same', boundary='symm')
        return out

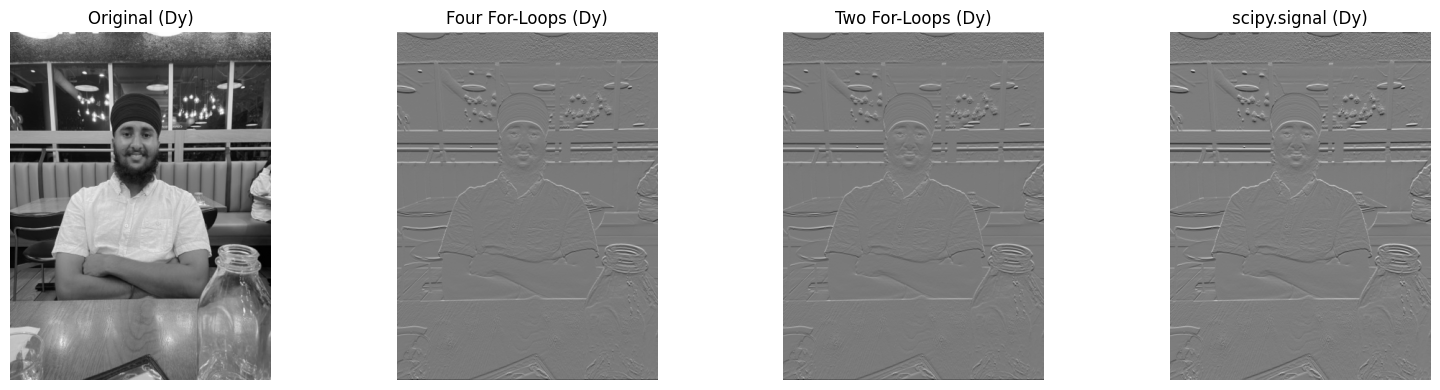

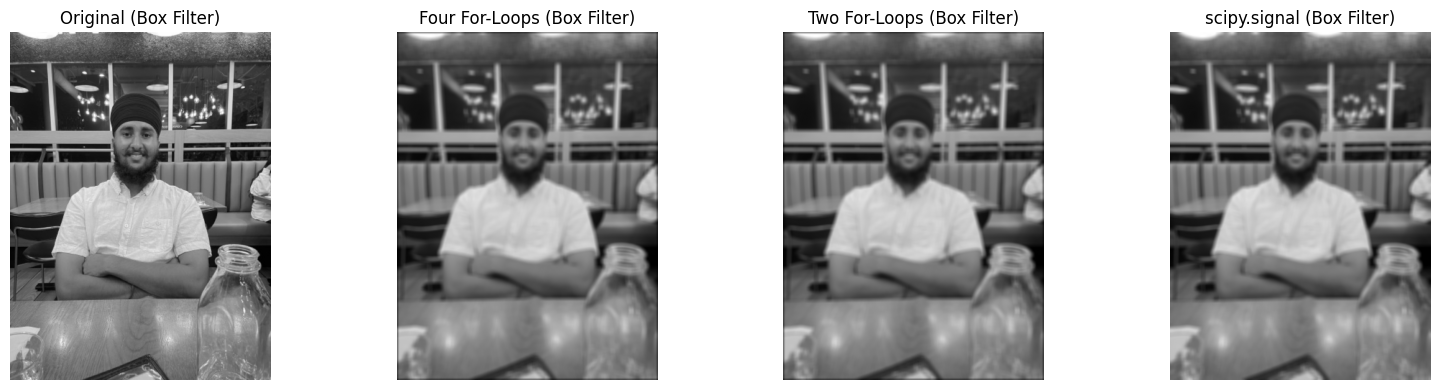

Basic Convolution Results

Part 1.2: Finite Difference Operator

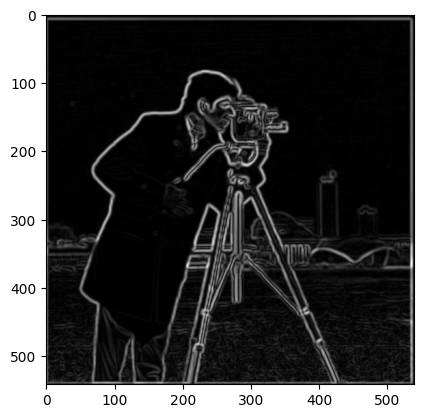

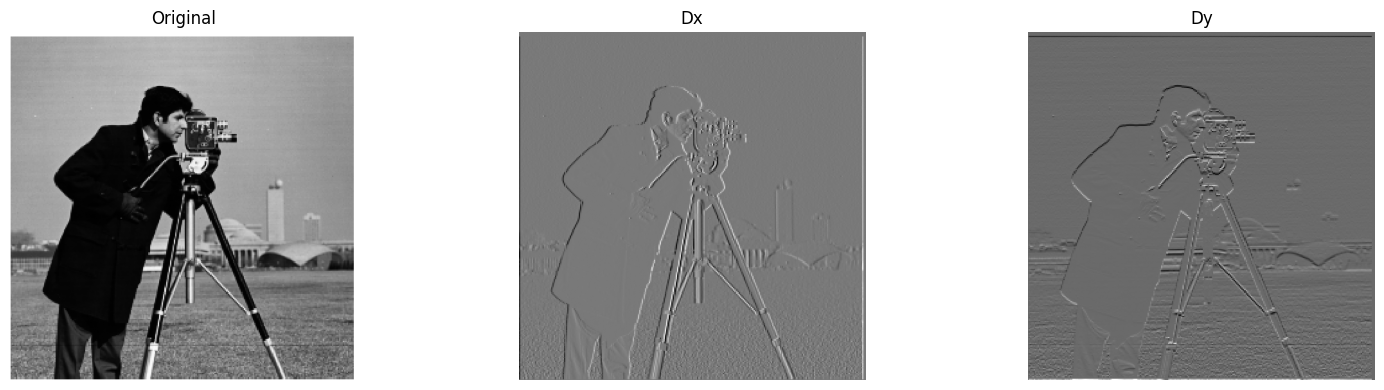

Using finite difference operators D_x = [[1, 0, -1]] and D_y = [[1], [0], [-1]], I computed partial derivatives and gradient magnitudes of the cameraman image. The gradient magnitude reveals edges but includes significant noise.

Edge Detection with Thresholding

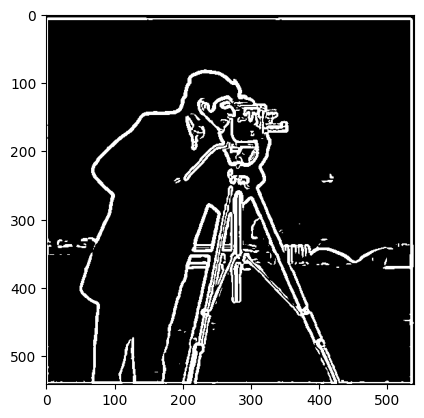

To create an edge image, I binarized the gradient magnitude using a threshold of 50 (pixel value), chosen to balance between noise suppression and edge preservation:

Part 1.3: Derivative of Gaussian (DoG) Filter

To reduce noise in edge detection, I first smoothed the image with a Gaussian filter before applying derivatives. This can be combined into a single convolution using Derivative of Gaussian (DoG) filters.

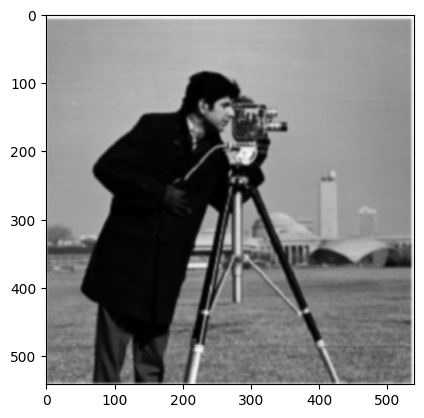

Gaussian Smoothing Results

Key Observation: Gaussian smoothing significantly reduces noise in the edge detection. The edges are cleaner and more continuous compared to the direct finite difference approach. Additionally, the threshold decreased by 2x, showing how Gaussian filtering is more optimal for filtering noise while detecting the most edges.

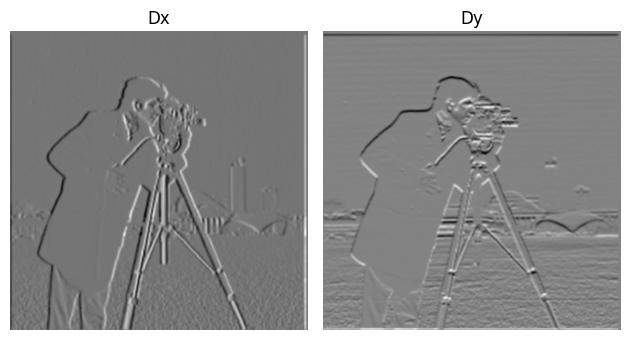

Derivative of Gaussian Filters

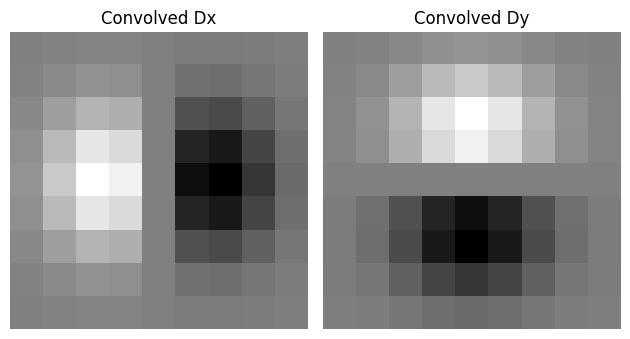

By convolving the Gaussian with D_x and D_y, we create DoG filters that combine smoothing and differentiation:

Part 2.1: Image Sharpening

Using the unsharp masking technique, we can enhance image details by amplifying high frequencies. The process involves subtracting a blurred version from the original to isolate high frequencies, then adding them back with amplification:

Taj Mahal Sharpening

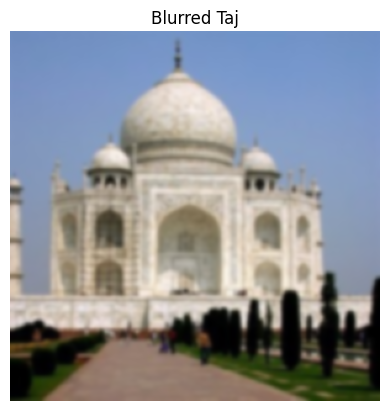

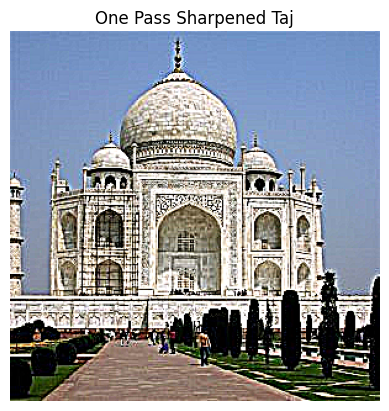

Original image, blurred version, and sharpened results with different alpha values:

Blur-then-Sharpen Evaluation

To evaluate the technique, I took a sharpened Taj image (α = 1), blurred it, then attempted to restore it through re-sharpening:

Observation: While sharpening enhances edges, it cannot fully recover details lost in blurring. The re-sharpened image shows enhanced edges but lacks the fine details of the original sharpened image, demonstrating the fundamental limitation that information lost through blurring cannot be completely restored.

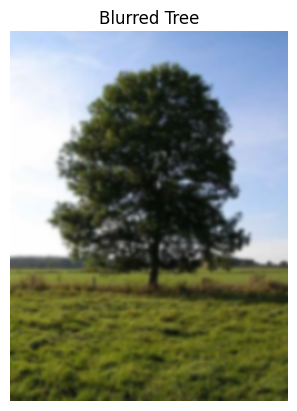

Additional Sharpening Example - Tree

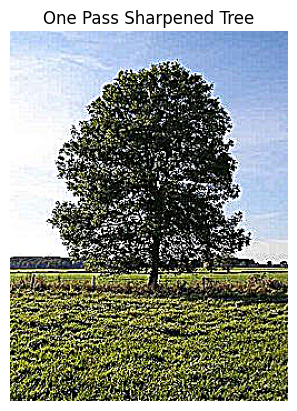

Another example with a tree image, showing the same sharpening process:

Part 2.2: Hybrid Images

Following Oliva, Torralba, and Schyns (2006), I created hybrid images that change interpretation with viewing distance. High frequencies dominate at close range while only low frequencies are visible from afar.

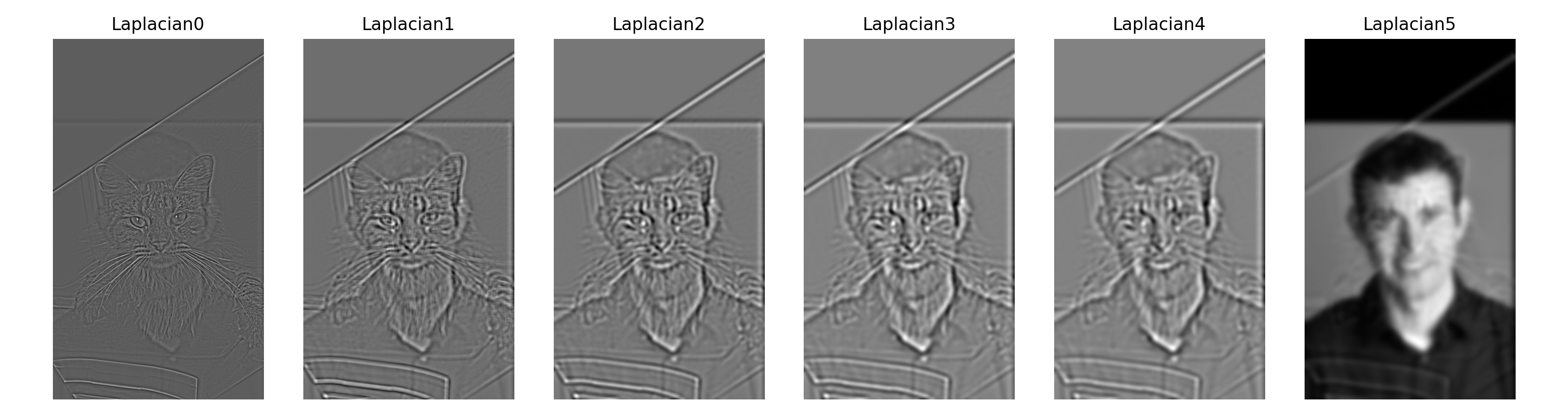

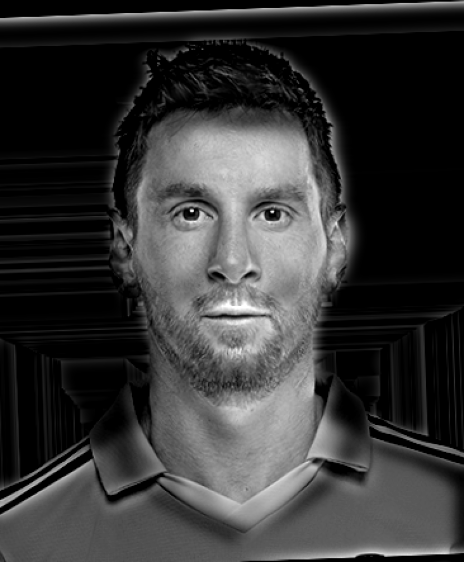

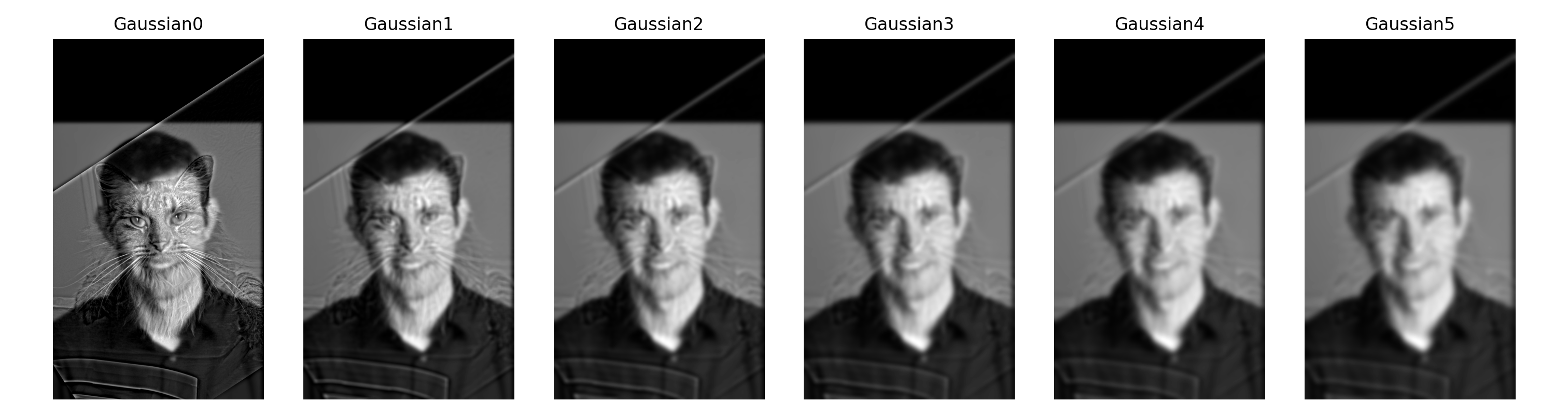

Cat/Man Hybrid Results

Messi/Ronaldo Hybrid Results (with Frequency Analysis)

Frequency Domain Analysis

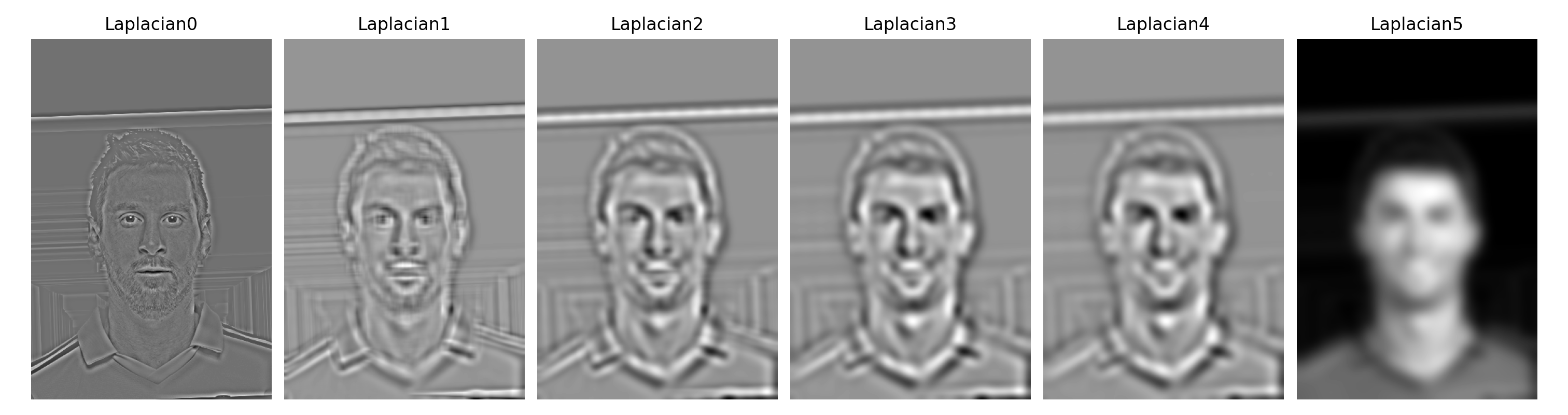

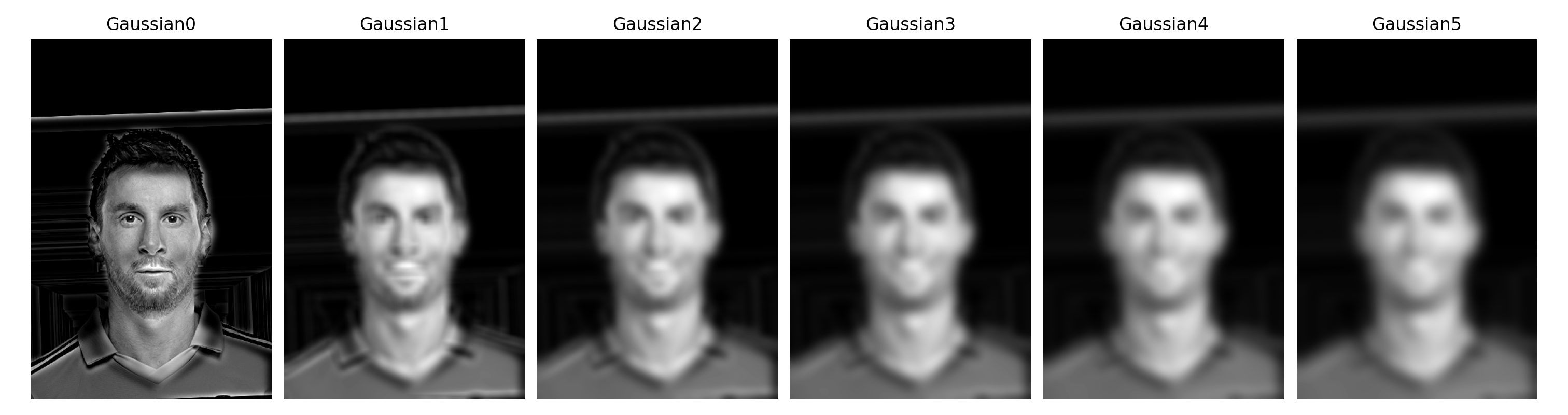

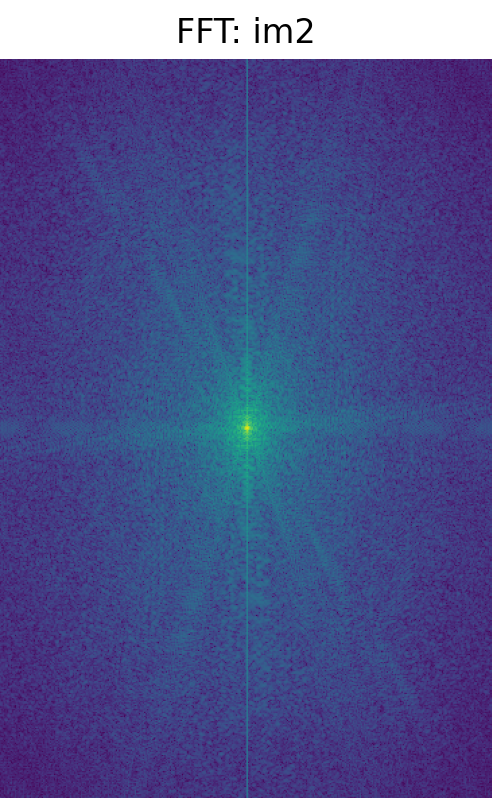

Complete frequency domain analysis for the Messi/Ronaldo hybrid:

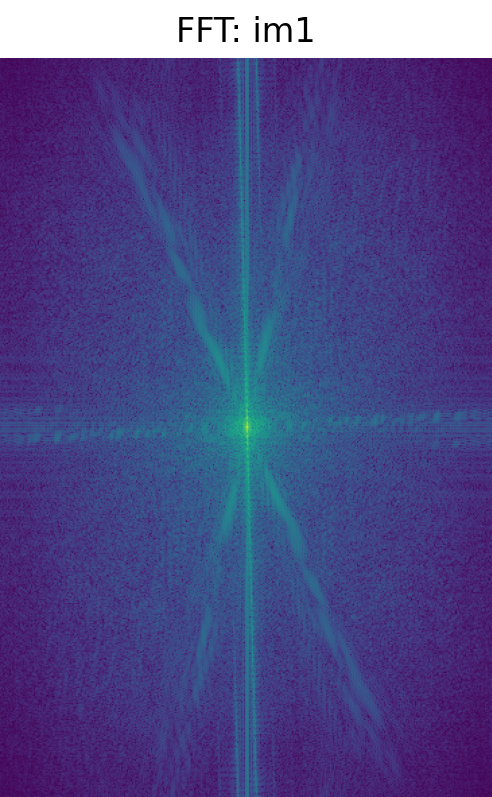

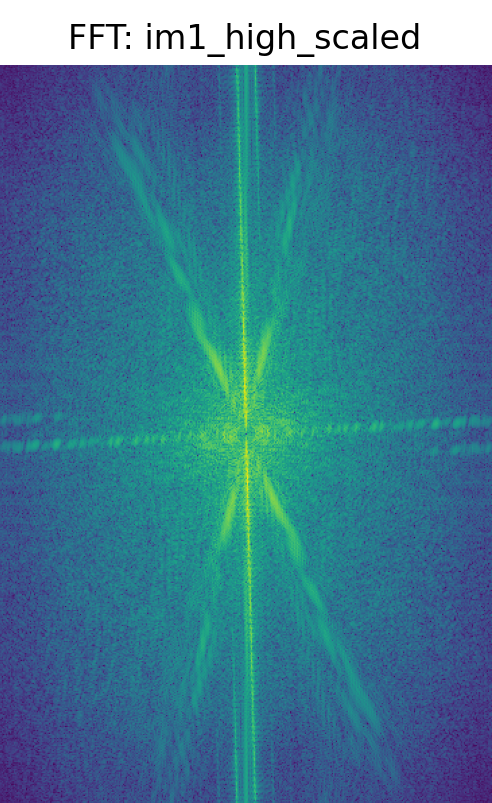

FFT Analysis: The frequency domain visualization clearly shows the filtering process. Initially, both Messi and Ronaldo images contain the full frequency spectrum. After filtering, Ronaldo's image retains only low frequencies, while Messi's image keeps only high frequencies. The hybrid FFT combines both components, showing how the final image contains low frequencies from one source and high frequencies from another.

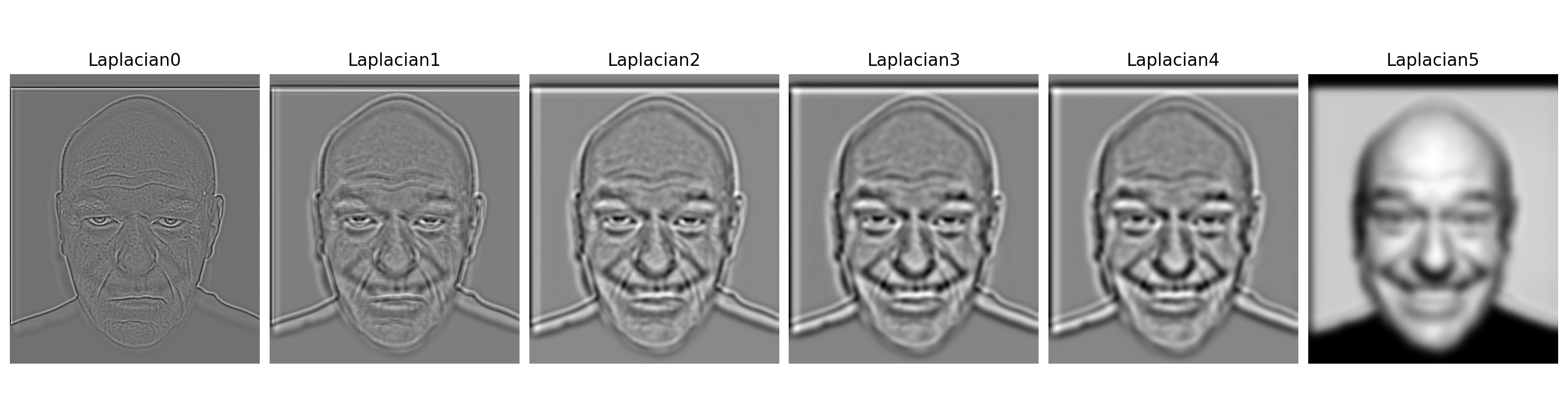

Smile/Neutral Hybrid Results

Part 2.3: Gaussian and Laplacian Stacks

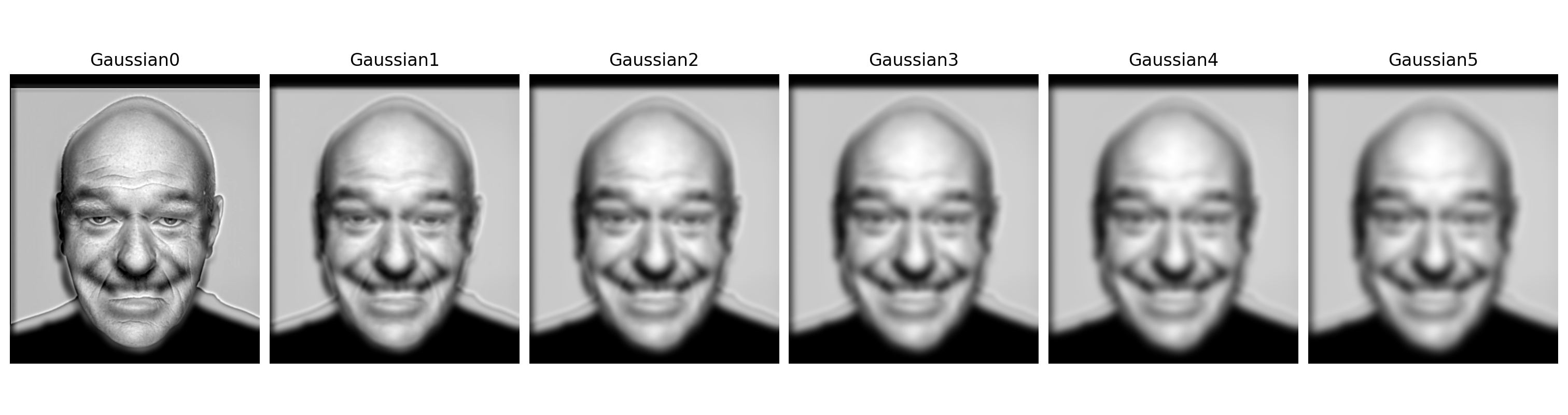

I implemented Gaussian and Laplacian stacks (similar to pyramids but without downsampling) to prepare for multi-resolution blending. Each level applies progressively more Gaussian blurring while maintaining full resolution.

Blending Process: The multiresolution blending works by decomposing each input image into frequency bands using Laplacian stacks. For each level, we blend the apple and orange Laplacian images using a mask that is also Gaussian-blurred at that level. This creates smooth transitions at each frequency scale - sharp transitions for high-frequency details and gradual transitions for low-frequency components. The final result is obtained by summing all the blended Laplacian levels, creating the seamless "Orapple" below.

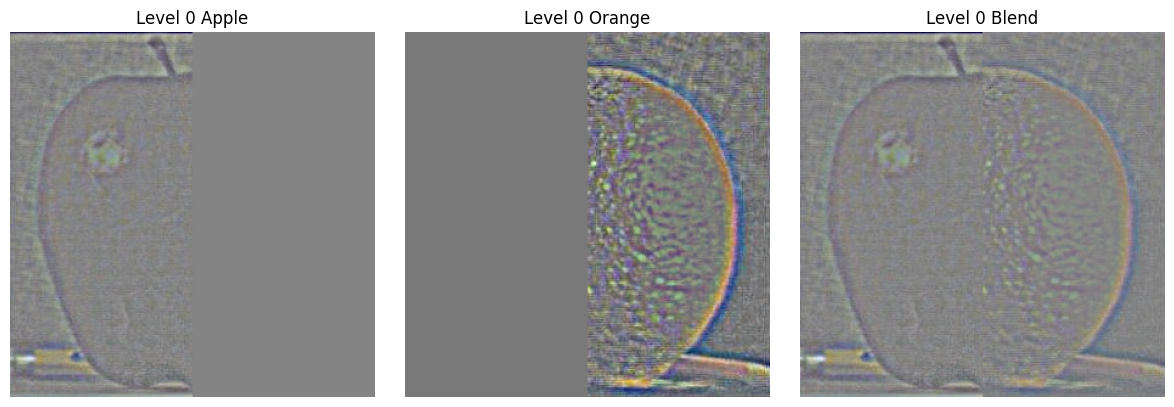

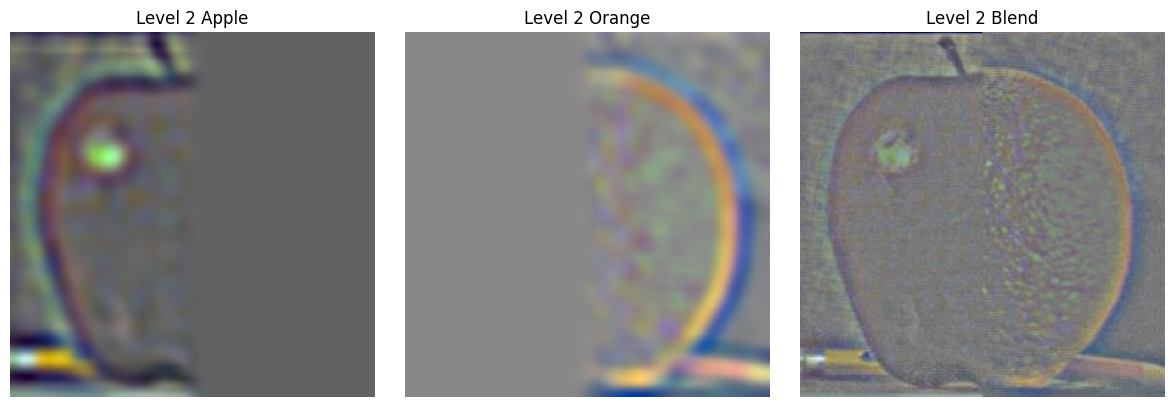

Apple and Orange Gaussian and Laplacian Stacks

Individual Gaussian and Laplacian stacks for the apple and orange images used in the blending:

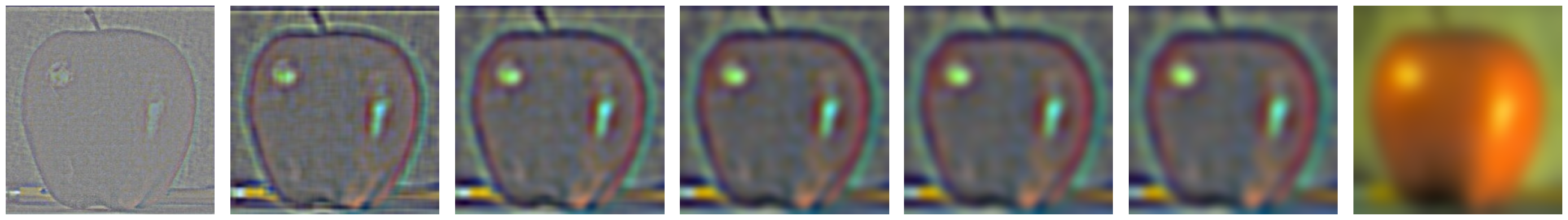

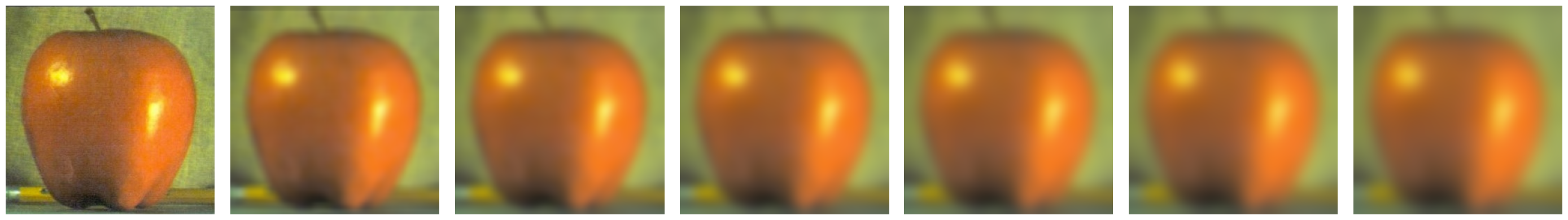

Apple Stack

Orange Stack

Orapple Stack Visualization

Recreating Figure 3.42 from Szeliski - showing the Gaussian and Laplacian decomposition at different levels:

Part 2.4: Multiresolution Blending

Using the Gaussian and Laplacian stacks, I implemented Burt and Adelson's (1983) multiresolution blending algorithm. This creates smooth seams by blending different frequency bands separately.

The Classic Orapple

Custom Blends - Darbar Sahib

Original images used for blending:

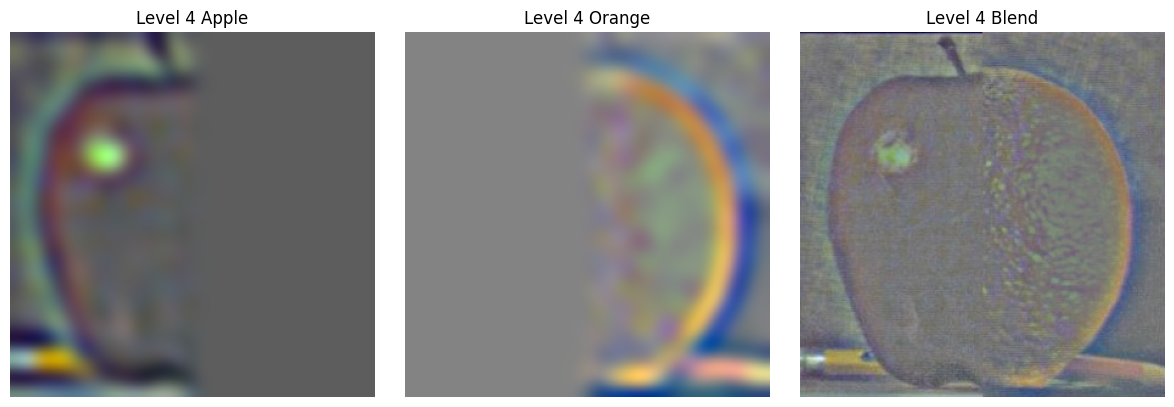

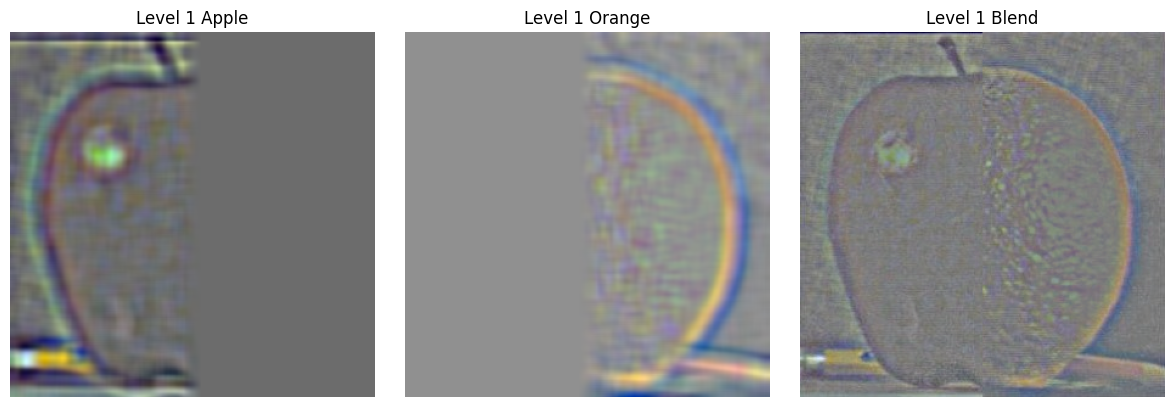

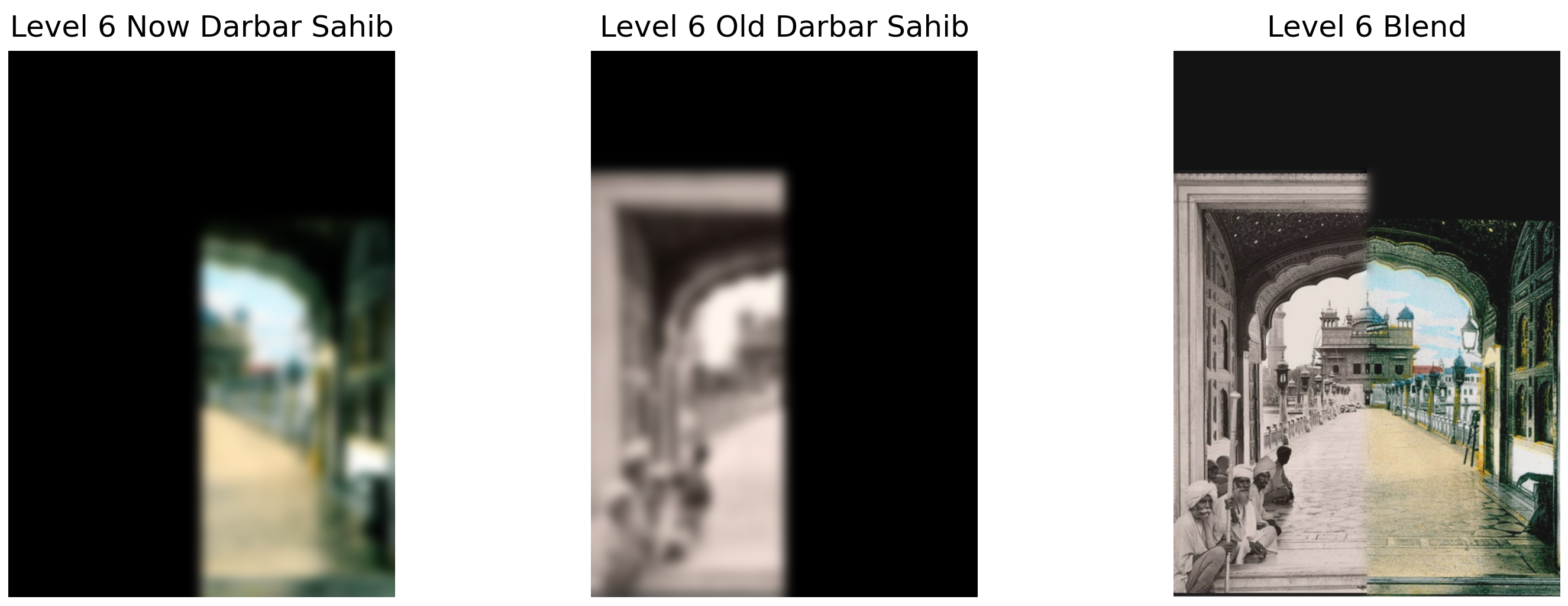

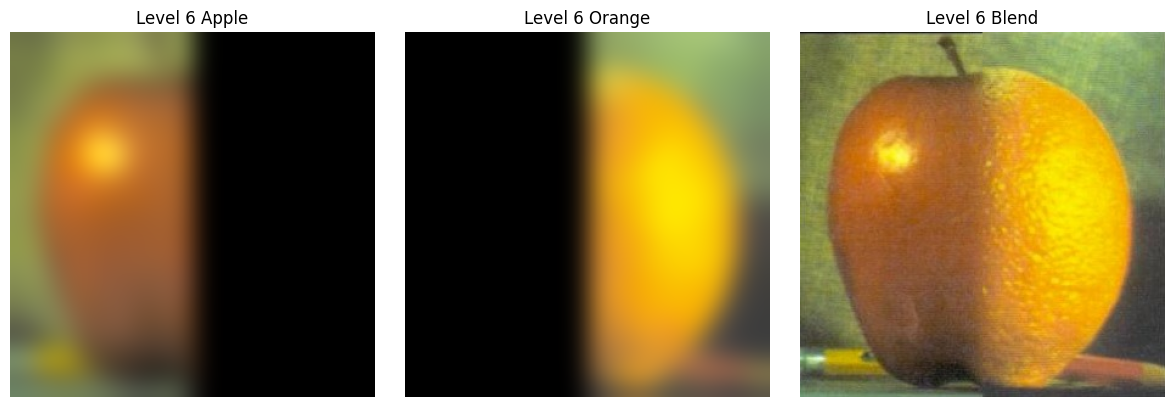

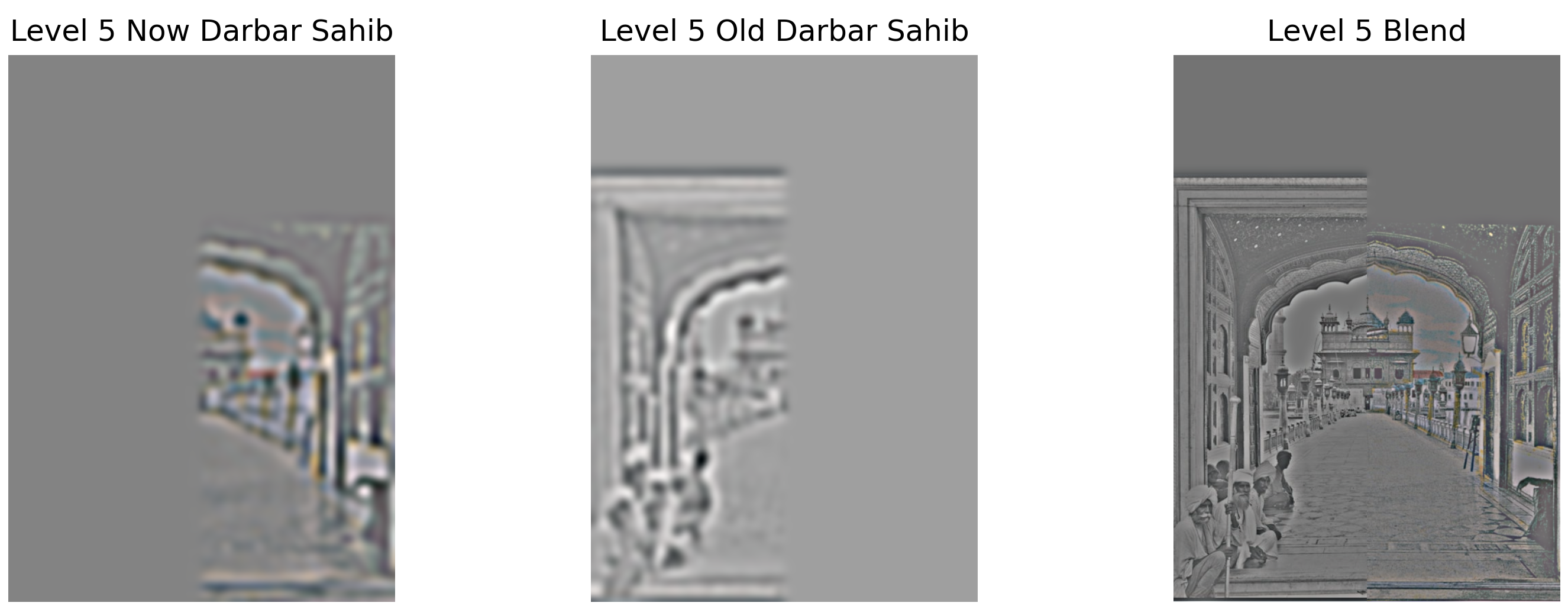

Laplacian stack levels showing the blending process:

Custom Blends - Big Ben (Irregular Mask)

Original images used for blending with irregular mask:

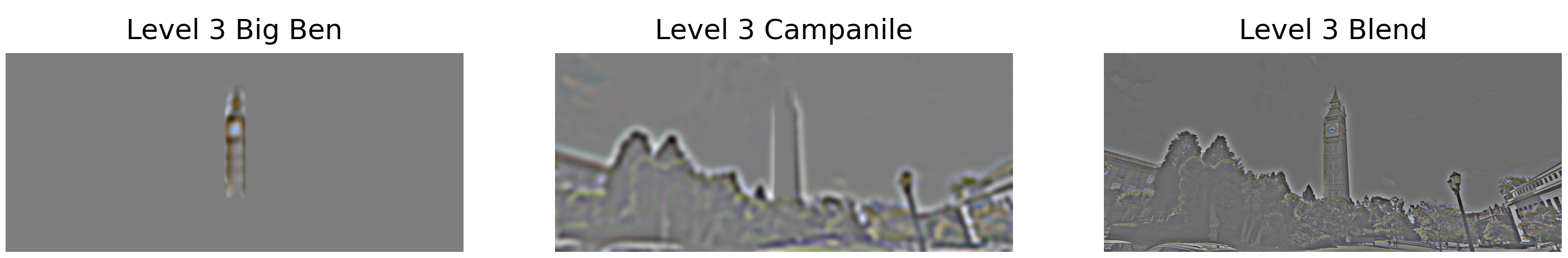

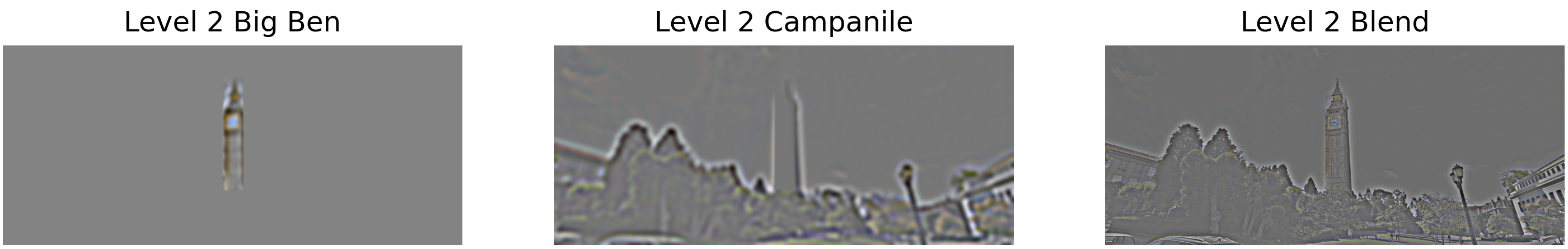

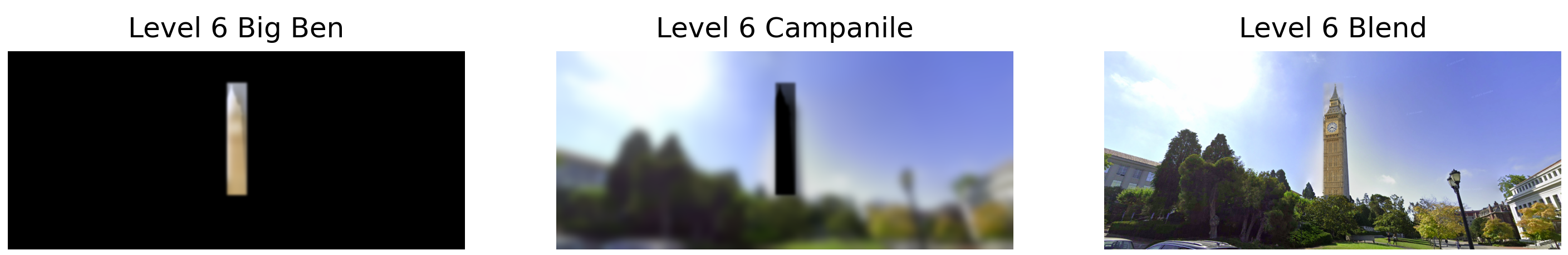

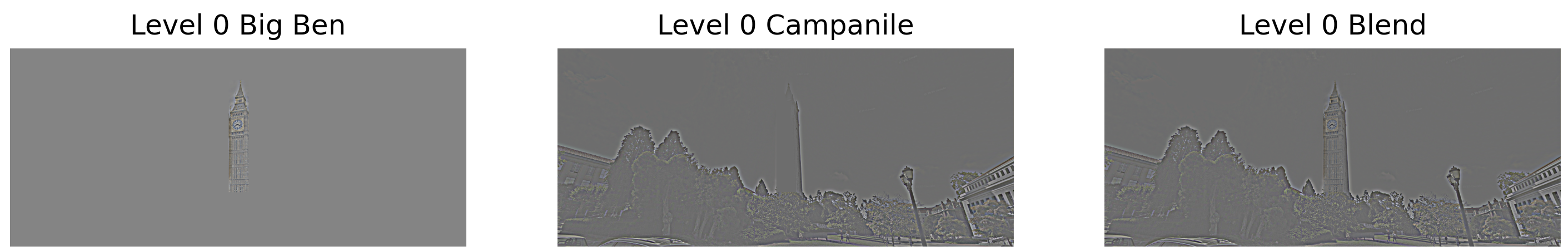

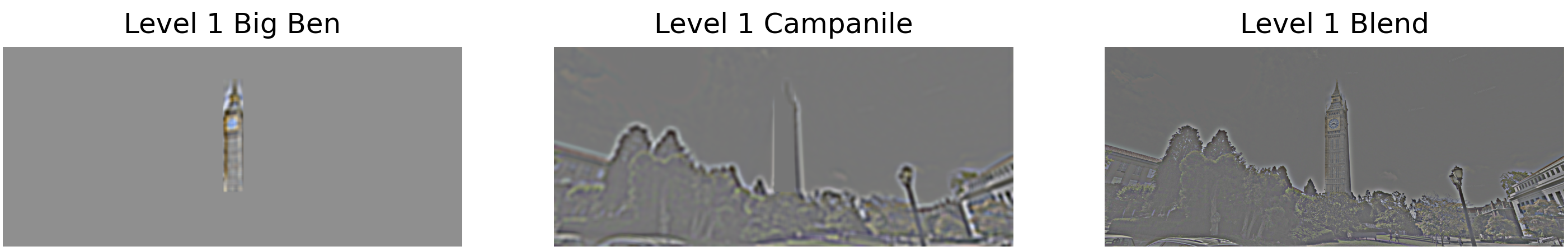

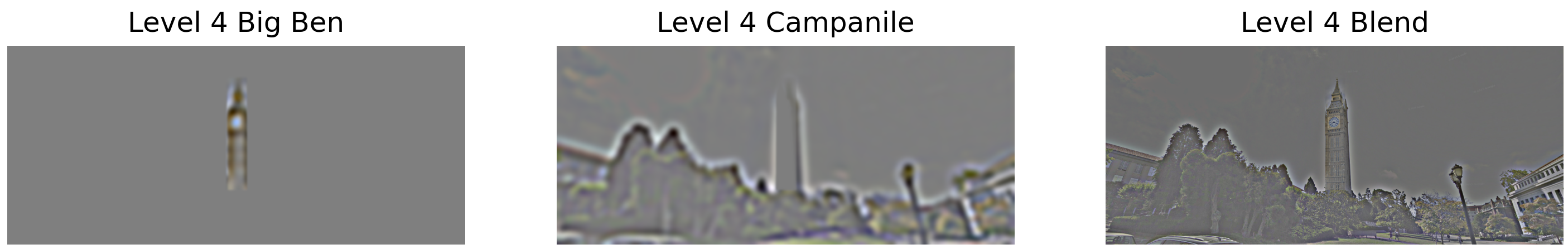

Laplacian stack levels showing the irregular mask blending:

Custom Blends - Eye

Original images used for blending:

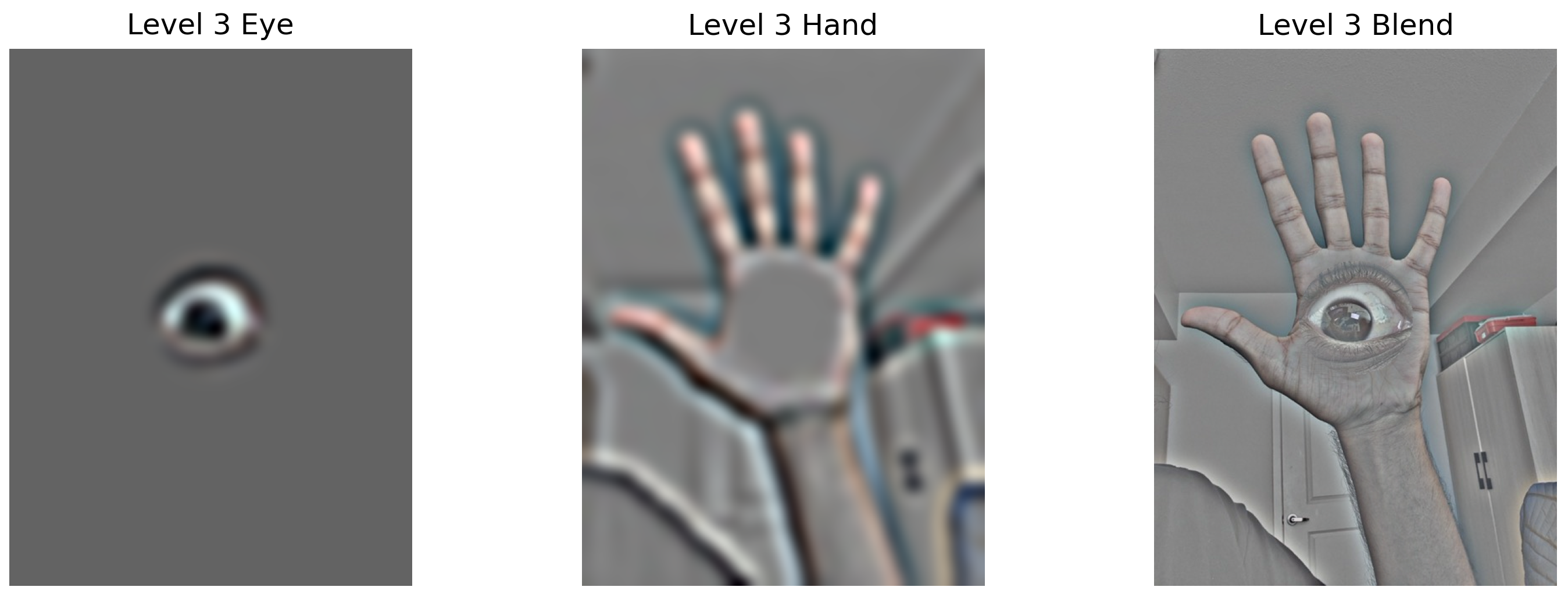

Laplacian stack levels showing the blending process:

Summary and Key Learnings
